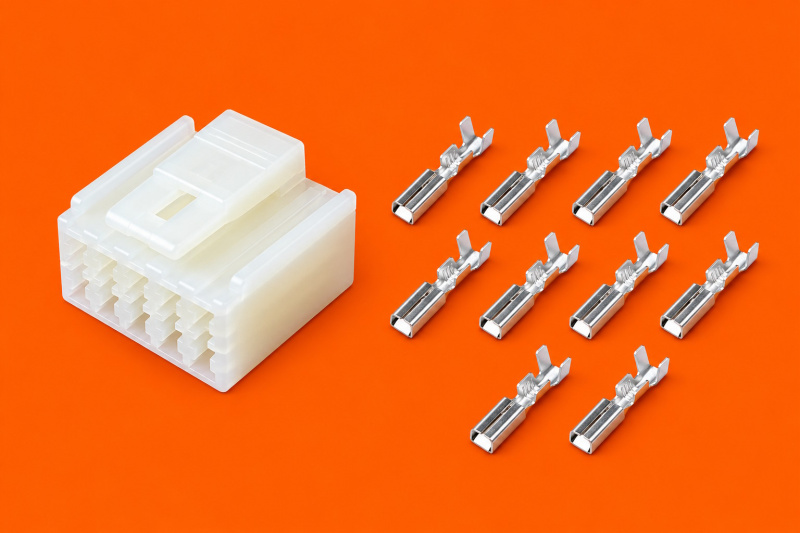

Defender hazard switch connector kit

Home > Defender Wiring

Price:: £4.99; inc VAT; £4.16; ex VAT
Product Code:: AFU3731/KIT; In Stock

Quantity:: Only 0 in stock. 0 will be placed on back order.

: Add to Basket Add to Basket

Product Information

10-way connector for Land Rover Defender hazard switch from 2002MY onwards.

Supplied as a single connector housing with 10 terminals - the Defender hazard switch uses 9 terminals.

The Land Rover part number for reference only is: AFU3731

Connector number C0096

Also used on Range Rover Classic Soft Dash, Discovery 1 Soft Dash, Freelander 1, Rover/MG hazard switches.

Pinout (pinout number view is the FACE of the connector, not the wire side)

1. Ignition 12V

2. Battery 12V

3. 12V Supply out to Flasher Relay

4. Illumination 12V

5. Ground for Illumination

6. Flasher Relay Output

7. Left Hand Indicator Feed

8. Hazard Warning Lamp Feed

9. Right Hand Indicator Feed

10. pin not used

For connector pinouts or any other help using this connector please email shop@fnltd.co.uk
